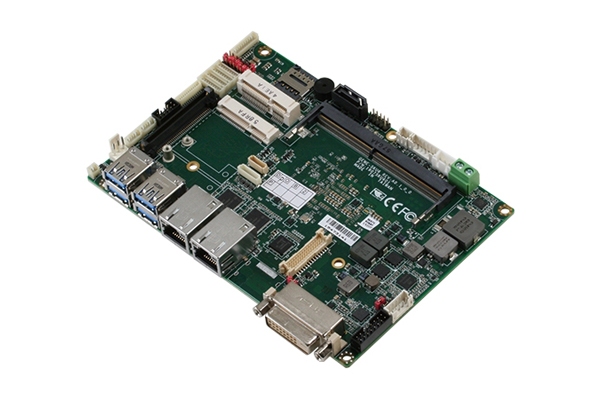

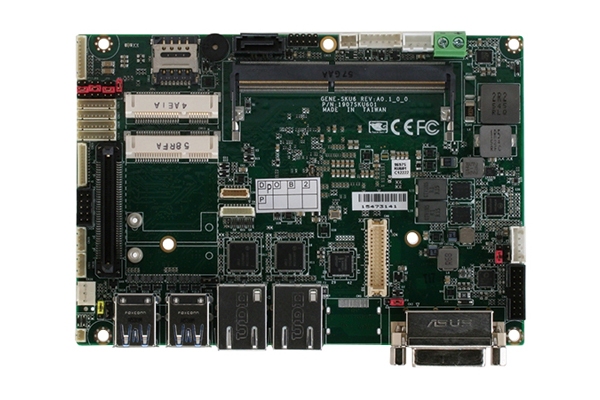

与同系列中先前的型号相比，搭载第六代英特尔®酷睿™处理器（Skylake)系统芯片的GENE-SKU6通过最新的集成芯片组和最高8 GB的DDR4内存提供了更为优秀的性能。同时设备上还带有一些最为常见的扩展接口与I/O，例如MiniCard、mSATA，以及研扬科技所独有、旨在实现快速定制的BIO接口。这些接口让设备可以适应任何种类的工业与嵌入式计算应用。
功能特点
英特尔®酷睿™i7/ i5的/酷睿i3/赛扬®处理器的系统芯片
DDR4 1866/2133, SODIMM x 1
DVI, CRT/DP, 18/24-bit双通道LVDS/eDP
双声道音频
SATA III x 1 & mSATA
支持8位数字I / O, USB 2.0 x 2 , USB 3.0 x 4
COM x 4 (RS-232 x 1, RS-232/422/485 x 3)
Mini-Card 插槽×1（全尺寸），TPM（可选），SIM卡
宽伏9~36V DC输入，+12V供电
4/5/8线电阻式触摸屏控制器
BIO接口扩充口,适用于子板
板载设计，易于系统组装和散热
技术规格 [GENE-SKU6]
| SYSTEM |
| FORM FACTOR | 3.5'' SubCompact Board |
| CPU | Intel® Skylake-U i5-6300U SoC Processor |
| CPU FREQUENCY | Up to 3.0GHz |
| CHIPSET | Intel® Skylake-U i5-6300U SoC Processor |
| MEMORY TYPE | DDR4 1866/2133, SODIMM x1 |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +9~36V or +12V |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | — |
| DIMENSION (L X W) | 5.75" x 4" (146mm x 101.7mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 81°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | TBD |
| CERTIFICATION | CE/FCC |
| DISPLAY |
| VGA/LCD CONTROLLER | Intel® Skylake-U i5-6300U SoC Processor |
| VIDEO OUTPUT | DVI-I, CRT/DP, LVDS (CRT is shared wih DP, and default is DP) |
| BACKLIGHT INVERTER SUPPLY | Yes |
| I/O |
| ETHERNET | Intel® i210/i211, 10/100/1000Base, RJ 45 x2 (Support EtherCAT) |
| AUDIO | High Definition Audio Interface |
| USB PORT | USB 3.0 x 4
USB 2.0 x 2 |
| SERIAL PORT | RS-232 x 1 , RS-232/422/485 x 3 |
| PARALLEL PORT | SPP/EPP/ECP x 1 (Option, share with DIO) |
| HDD INTERFACE | SATA 3.0 x 1
+5V SATA power connector x 1 |
| FDD INTERFACE | — |
| SSD | mSATA (shared with half-size Mini-Card and selectable by BIOS) |
| EXPANSION SLOT | 1. BIO x 1
2. Mini-Card x 2 and default is
2.1. mSATA x 1 (half-size)
2.2. Mini-Card x 1(Full-size) |
| DIO | 8 Bit |
| TPM | x 1 (Optional) |
| TOUCH | x 1 |
