| SYSTEM |
| PROCESSOR | Intel® 4th Generation Core™ i7/i5/i3/Pentium®/ Celeron® 22nm LGA 1150 socket Processor |
| CHIPSET | Intel® Q87 Express Chipset |
| MEMORY | 240-pin DIMM x 4, max. 32GB, DDR3 1600/1333 MHz, non-ECC, un-buffered memory, Dual channel memory architecture |
| GRAPHICS | — |
| I/O CHIPSET | NCT6791D, F81216HD |
| ETHERNET | LAN1: Intel® PHY I217LM Giga LAN (support AMT 9.0) x 1 LAN2: Intel® I210AT Giga LAN x 1, RJ-45 x 2 |
| AUDIO | Realtek® ALC887 (Colay with ALC886) |
| TPM | 20-1 PIN header for TPM1.2/FW3.19 |
| EXPANSION SLOT | PCIe 3.0/2.0[x16] Slot x 1, PCIe 2.0 [x4] Slot x 1, PCI x 5 |
| BIOS | 64Mbit Flash ROM x 2, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS |
| GRAPHICS CHIPSET | Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY | SKU1 (VGA/ DVI/ HDMI/ DP): VGA+DVI, VGA+HDMI, VGA+DP, DVI+HDMI, DVI+DP, HDMI+DP, VGA+DVI+HDMI, VGA+DVI+DP, HDMI+DP+VGA;
SKU2 (VGA/ DVI/ 2xHDMI): VGA+DVI, VGA+HDMI1, VGA+HDMI2, DVI+HDMI1, DVI+HDMI2, HDMI1+HDMI2, VGA+HDMI1+HDMI2, VGA+HDMI1+DVI, VGA+HDMI2+DV |
| VGA | Up to 1920 x 1200 @60Hz |
| DVI | Up to 1920 x 1200 @60Hz |
| HDMI | HDMI 1.4, up to 4096 x 2610 @24Hz |
| DISPLAYPORT | DP 1.2, up to 2560 x 1440 @60Hz |
| LVDS | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 24-pin ATX connector x 1, 8 pin ATX 12V Power connector x 1 |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% RH, non-condensing |
| CERTIFICATION | CE & FCC Class A |
| FORM FACTOR | ATX Form Factor, 12" x 9.6" (305 mm x 244 mm) |
| WEIGHT | 1.76 lb (0.8 Kg) |
| MTBF (HOURS) | 86000 |

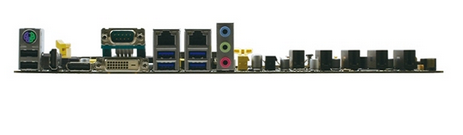

| REAR PANEL I/O PORTS |
| USB | USB 3.0 ports x 4, USB 2.0 port x 2 |
| DISPLAY I/O | DVI-D x 1, HDMI x 1 (Dual HDMI optional), DP x 1 (will disable if choose 2 HDMI) |
| AUDIO I/O | Audio Jack x 3: Line-in, Mic-in, Line-out |
| LAN I/O | LAN (RJ-45) port x 2 |
| SERIAL PORT | RS-232/422/485 DB-9 connector x 1 (COM1, supports 5/12V on RI pin) |
| PS/2 PORT | PS/2 Combo Port (Keyboard & Mouse) x 1 |
| INTERNAL I/O CONNECTORS |
| STORAGE | SATA3 (6.0Gb/s) port x 6, Supports RAID 0/1/5/10 |
| USB | USB 2.0 connectors x 4 support additional 8 USB ports |
| DISPLAY I/O | VGA x 1 |
| SERIAL PORT | RS-232 header x 5 |
| PARALLEL PORT | LPT connector x 1 |
| DIO | 8-bit Digital I/O interface x 1 (In/Out programmable) |
| FAN | CPU Fan connector(s) (4-pin) x 1, Chassis Fan connector(s) (4-pin) x 2 |
| POWER | — |
| OTHERS | Front panel header x 1, Clear CMOS jumper x 1, BIOS flash header (2[x4]P p=1.27mm) x 1 |
| OS |
| OS SUPPORT | Windows® 7 32/64-bit, Windows® 8.1 32/64-bit, Linux Fedora |
