ACD-515D是一款15.6"WXGA资讯娱乐多点触控显示器，采用WXGA多点触控显示屏幕，可选择VESA 75/100安装方式。ACD-515D支持宽温操作，工作温度在0~40°C(32~104°F)之间，并采用高亮度TFT-LCD显示器，且防水防尘，可用于严苛的作业环境中。
操作系统方面，ACD-515D可支持Windows® XP、Windows® 7和Linux Fedora。ACD-515D采用DC 12V电源，并附有1个AC电源供应器。「屏幕菜单显示功能」(On Screen Display,OSD)则可支持菜单、自动调节、LCD开/关、向上和向下等常用的功能。配备有3个USB接口、1个Line-out接口和2个2W扬声器，使用者可以通过VGA//DVI线来传输数据或图片。另外，ACD-515D还采用投射式电容多点触控屏，提供两指触控，使用者可用两个手指来放大与缩小屏幕。
ACD系列采用强固型设计，可应用于任何环境中。高硬度抗刮面板(摩氏硬度7H)让产品的生命周期更长，而通过IP-65/NEMA4认证前面板及IPx1认证外快了则使ACD-515D更加耐用。ACD-515D 非常适合应用于数字标牌、户外及商场的Kiosk机和交通运输等领域。
应用：多点触控，娱乐信息节目，零售
技术规格：
| SYSTEM |
| INPUT SIGNAL | VGA/ DVI-D |
| ON SCREEN DISPLAY CONTROL | Menu, Auto, LCD On/Off, Up, Down |

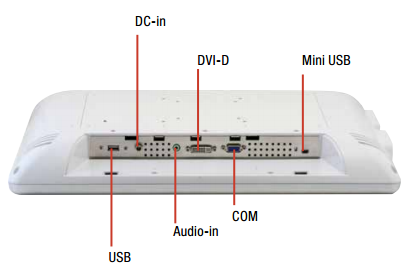

| I/O PORT | USB x 3 (2 on side; 1 on rear), VGA/DVI x 1, Mini-USB x 1 (for T/S), Line-out x 1, 2W speaker x 2 |
| OS SUPPORT | Windows® XP (T/S: single point), Linux Fedora (T/S: single point), Windows® 7 (T/S: multi-point) |
| MECHANICAL |
| CONSTRUCTION | IP65/ NEMA4 for plastic front bezel, IPX1 for plastic chassis |
| MOUNTING | VESA 75/100 |
| DIMENSION | 15.51” x 10.71” x 2.32” (394mm x 272mm x 59mm) |
| CARTON DIMENSION | 20.47” x 18.5” x 9.06” (520mm x 470mm x 230mm) |
| GROSS WEIGHT | 11.02 lb (5 kg) |
| NET WEIGHT | 6.6 lb (3 kg) |
| ENVIRONMENTAL |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| STORAGE HUMIDITY | 10~95% @ 40°C, non-condensing |
| VIBRATION | 1 Grms/ 5~500Hz/ random operation |
| SHOCK | 15 G peak acceleration (11 msec. duration) |
| EMC | CE/FCC class A |
| POWER SUPPLY |
| DC INPUT | DC 12V, with lockable power adapter |
| LCD |
| DISPLAY TYPE | 15.6" TFT-LCD, LED type |
| MAX. RESOLUTION | 1366 x 768 |
| MAX. COLORS | 16.7M colors (6/8-bit for R,G,B) |
| LUMINANCE | 400 cd/m2 |
| VIEWING ANGLE | 160°(H)/140°(V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | 50000 |
| TOUCHSCREEN |
| TYPE | Projected capacitive multi-touch (2-point) |
| LIGHT TRANSMISSION | 90% |
| LIFE TIME | — |
