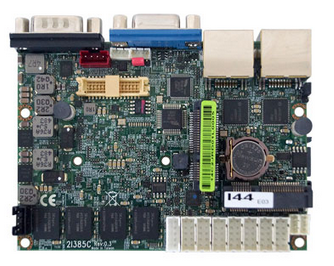

| MODEL | EMB-385A | |
| CPU Type | Intel Bay Trail-I E3825 1.33 GHz (Dual Core) /
Intel Bay Trail-I E3845 1.91 GHz (Quad Core) | |
| MB Chipset | Intel Bay Trail-I E3825 chipset | |
| BIOS | Insyde UEFI BIOS |
| Graphics | Intel's 7th generation (Gen 7) graphics and media encode/decode engine,
Supports DX*11, OpenGL 3.0 (OGL 3.0), OpenCL 1.2 (OCL 1.2), OpenGLES 2.0 |
| System Memory | On Board2G/4G DDR3L ; 1066 MHz for E3825, 1333 MHz for E3845 |
| LVDS |
| 2 channel 24/48 bits LVDS up to
1920 x 1080 resolution. |
| Touch Screen |
| USB interface Touch screen controller |
| SATA | 1 x SATA ports 2.0 Data transfer rates up to 3.0 Gb/s (300 MB/s)(Option)
1 x mini card socket for mSATA |
| Audio | High Definition Audio Specification, Support Line-out/Mic-in |
| Audio Amplifier |
| Two channel Class D Audio Amplifier;
2.57W/Ch (Typ.) into a 4ΩLoad,1.46 W/Ch (Typ.) into a 8ΩLoad |
| LAN | 2 x Intel 10/100/1000 Mbps |
| IO Function | | 4 x RS232 | (1 x external RS232 optional to RS422/485) | | (3 x internal RS232 optional to RS485) |
|
| USB | 4 x USB 2.0 (2 x external + 2 x internal) |
| DIO & WDT |
| Hardware digital Input & Output,
4 x DI/4 x DO |
| Hardware Watch Dog Timer, 0~255 sec programmable |
| Expansion Interface | 1 x Full size Mini card for Auto detect PCIe & mSATA and USB interface
1 x Half size PCIe Mini card for mSATA and USB interface |
| Power | DC-IN +12V | Wide Range +9V~+36V |
| Dimension | Pico-ITX 102 x 73 mm (2.5 inch) |
| Operation Temperature | -20°C ~ 70°C |
| Operation Humidity | 5 ~ 95%, non-condensing |
| Expansion | GPS, IEEE1394, 3G / 4G, Bluetooth, WI-FI, I/O, Video Card |
| Chassis | BOX PC : TWIN |
