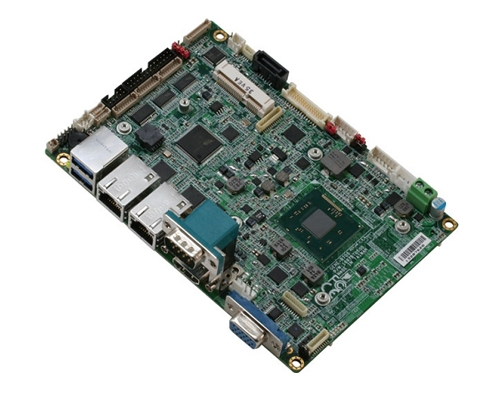

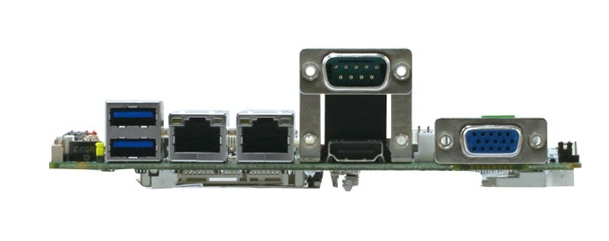

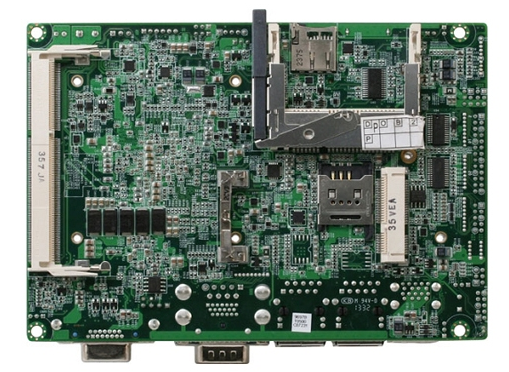

GENE-BT05采用英特尔®赛扬®N2930/N2807处理器。系统内存使用204针SODIMM插槽的DDR3L 1066/1333内存，最高8 GB。此外板上还载有英特尔®I211，支持两个10/100/1000Base-TX以太网，可以实现更快的网络连接。
GENE-BT05的显示系统支持CRT/LCD和HDMI/LCD下的同步双显。该型号还带有两个Mini Card和LPC总线，可以进行灵活的功能扩展。板上还有一个SATA 3.0Gb/s、一个CFastTM和可选的半尺寸mSATA接口，用于提供丰富的储存空间。此外GENE-BT05还配备了三个USB2.0、一个USB3.0、四个COM端口（其中两个为RS-232，两个为RS-232/422/485）以及8位数字I/O。这种功能全面的配置让GENE-BT05成为了一种兼具灵活性和人性化的解决方案。这款全新的嵌入式单板计算机可以满足自动化、医疗、售票机、运输、博彩、Kiosk和POS/POI等各种应用中的需要。
应用
功能特点
Onboard Intel® Atom™ and Celeron® Processor SoC
DDR3L 1066/1333MHz SODIMM x 1, Up to 8 GB
Gigabit Ethernet x 2, RJ-45 x 2
CRT, 18/24-bit Dual-Channel LVDS LCD, HDMI
2CH HD Audio
SATA 3.0Gb/s x 1, CFast™ x 1
USB3.0 x 1, USB2.0 x 3, COM x 4, 8-bit Digital I/O
Mini Card x 2 (Full-size x 1, Half-size x 1)
+12V Only Operation
Onboard 4/5/8-wire Resistive Touch Screen Controller (Optional)
AAEON Hi-Safe/SDK/Utility Supported
mSATA x 1 (Optional, Would Replace Mini Card Interface)
Onboard Trusted Platform Module (Optional)
技术规格 [GENE-BT05]
| SYSTEM |
| FORM FACTOR | 3.5'' SubCompact Board |
| CPU | Intel® N2930/N2807/J1900/E3845/E3825 |
| CPU FREQUENCY | Up to 2.0GHz |
| CHIPSET | Intel® N2930/N2807/J1900/E3845/E3825 |
| MEMORY TYPE | DDR3L 1066/1333, SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 8G |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Level |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® N2930, DDR3L 1600MHz 8G, 0.65A@+12V |
| DIMENSION (L X W) | 5.75" x 4" (146mm x 101.6mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C),
-40°F ~ 185°F (-40°C ~ 85°C) WiTAS 2 (E3825, E3845) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 111000 |
| CERTIFICATION | CE/FCC |
| DISPLAY |
| VGA/LCD CONTROLLER | Intel® N2930/N2807/J1900/E3845/E3825 |
| VIDEO OUTPUT | CRT+LVDS, HDMI+LVDS , CRT+HDMI |
| BACKLIGHT INVERTER SUPPLY | Up to 24-bit dual-channel LVDS x 1 |
| I/O |
| ETHERNET | Intel® I211 (or 210), 10/100/1000Base-TX, RJ-45 x 2 |
| AUDIO | High definition audio interface |
| USB PORT | USB2.0 x 3 , USB 3.0 x 1 |
| SERIAL PORT | RS-232 x 2 , RS-232/422/485 x 2 |
| PARALLEL PORT | SPP/EPP/ECP x 1 |
| HDD INTERFACE | SATA 2.0 x 1 |
| FDD INTERFACE | — |
| SSD | CFast™ (alternative with mSATA by BOM and also occupy one Mini-Card location) |
| EXPANSION SLOT | Mini-Card x 2(Full-size x 1, Half-size x 1) |
| DIO | 8 bit |
| TPM | x 1 |
| TOUCH | x 1 |
